<p>The simple structure of the outstanding air-cooled generators ensures easy maintenance and short time installation.</p>
<p><img src="https://0aab1c21-cdn.agilitycms.cloud/Attachments/NewItems/bg01.jpg" alt="" /></p>
<h3></h3>
<h3>New ventilation system for larger output</h3>
<p>The latest analytical technologies applied, achieving an optimal cooling system that suppresses temperature rise throughout the generator and realizes higher generator output. <br /><br /><img src="https://0aab1c21-cdn.agilitycms.cloud/Attachments/NewItems/Latest Technologies 1-1-03.jpg" alt="" /></p>
<h3>Higher efficiency fan for lower windage loss</h3>
<p>A small, high efficiency propeller fan is incorporated to ensure that required fan characteristics are realized, sufficiently reducing wind loss and realizing a high efficiency generator.</p>
<h4></h4>

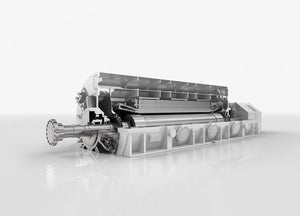

<h4>SFM (Simple Frame Modular)</h4>
<p>For small and medium output air-cooled generator(up to 100 MVA class)</p>
<p><img src="https://0aab1c21-cdn.agilitycms.cloud/Attachments/NewItems/Latest Technologies 1-1-04.png" alt="" /></p>

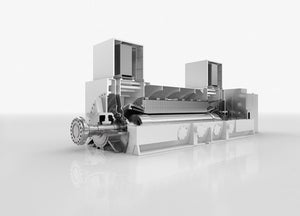

<h4>FTC (Fan-to-Cooler)</h4>
<p>For large output air-cooled generator(from 100 MVA class)</p>
<p><img src="https://0aab1c21-cdn.agilitycms.cloud/Attachments/NewItems/Latest Technologies 1-1-05.png" alt="" /></p>

Air-Cooled Generators

<p>Mitsubishi Electric hydrogen-cooled generators are highly efficient and cover the widest output range, up to 900MVA. The compact frame size is ideal for rail transportation.</p>
<p><img src="https://0aab1c21-cdn.agilitycms.cloud/Attachments/NewItems/Hydrogen-image-bg02.jpg" alt="" /></p>
<h3>Higher efficient VP-X Series turbine generators</h3>
<p>Utilizing technologies that improve generator cooling, raise efficiency even higher and enable a smaller, more compact design, the world largest output 870MVA generator has achieved world-leading high efficiency of 99%.</p>
<p>*As of December 8, 2014, based on in-house research.</p>
<p><img src="https://0aab1c21-cdn.agilitycms.cloud/Attachments/NewItems/Technology-1-2-03.jpg" alt="" /></p>
<h4>Typical specifications of generator developed</h4>
<table border="1" style="width: 100%; border-collapse: collapse; border-style: none;">
<tbody>
<tr>
<td style="width: 50%;">Maximum output&nbsp;</td>
<td style="width: 50%;">870MVA</td>
</tr>
<tr>
<td style="width: 50%;">Power factor</td>
<td style="width: 50%;">0.90</td>
</tr>
<tr>
<td style="width: 50%;">Rotational speed</td>
<td style="width: 50%;">3,600min-1/60Hz</td>
</tr>
<tr>
<td style="width: 50%;">Efficiency</td>
<td style="width: 50%;">99%</td>
</tr>
<tr>
<td style="width: 50%;">Cooling system</td>
<td style="width: 50%;">Hydrogen</td>
</tr>
</tbody>
</table>
<h3></h3>
<h3>Compact frame design</h3>
<p>Smaller generator diameter realized using compact gas cooler</p>
<p><img src="https://0aab1c21-cdn.agilitycms.cloud/Attachments/NewItems/Technology-1-2-04.png" alt="" /></p>
<h3><br />High performance gas cooler</h3>
<p>Fin shape changed to reduce size</p>
<p><img src="https://0aab1c21-cdn.agilitycms.cloud/Attachments/NewItems/Hydrogen-1-2-05.png" alt="" /></p>
<h3></h3>
<h3>High-efficiency fan</h3>
<p>Fan efficiency improved, realizing higher pressure and larger airflow capacity Stator and rotor cooling performance improved</p>
<p><img src="https://0aab1c21-cdn.agilitycms.cloud/Attachments/NewItems/Hydrogen-1-2-06.png" alt="" /></p>
<h3></h3>
<h3>Electromagnetic 3D FEM Analysis</h3>
<p>Optimized design by utilizing 3D FEM analysis for evaluation of electrical loss and electromagnetic force, etc.</p>
<p><img src="https://0aab1c21-cdn.agilitycms.cloud/Attachments/NewItems/Hydrogen-1-2-07.png" alt="" /></p>

Hydrogen-Cooled Generators

<p>Using hydrogen to directly cool the rotor and water to directly cool the stator coils, Mitsubishi Electric water-cooled generators have the highest cooling performance and offer higher efficiency.</p>
<p><img src="https://0aab1c21-cdn.agilitycms.cloud/Attachments/NewItems/Water cooled image-bg03.jpg" alt="" /></p>
<p></p>
<h3>Large output generators</h3>
<p>In parallel with improving cooling performance, it is possible to increase output density and therefore maximum output. The largest outputs for 4- and 2-pole water-cooled generators were a 1,600MVA class in 2,000 and 1,200MVA class in 2012, respectively. Today, designs for 2,000MVA class 4-pole generators and 1,400MVA class 2-pole generators have been completed.</p>
<p></p>
<h3>Technologies applied</h3>
<p>Stator coil-end rigidly has been improved by incorporating a specially designed large resin cone that supports the structure and enables maximum output to be achieved. A high-quality brazing system that applies vertical brazing has also been introduced, ensuring the highest level of reliability.</p>
<p></p>
<h4>FTC (Fan to cooler)</h4>
<p><img src="https://0aab1c21-cdn.agilitycms.cloud/Attachments/NewItems/Technology-1-3-03.png" alt="" /></p>
<h3></h3>
<h3>New series water-cooled generator</h3>
<p>In order to meet diversified market needs, a new series of water-cooled generators has been developed to achieve higher efficiency, easy maintenance and shorter delivery time.</p>
<p style="text-align: center;"></p>
<h4 style="text-align: center;">Cooling structure of conventional water-cooled generator</h4>
<p><img src="https://0aab1c21-cdn.agilitycms.cloud/Attachments/NewItems/Technology-1-3-04.png" alt="" /></p>
<p><img src="https://0aab1c21-cdn.agilitycms.cloud/Attachments/NewItems/arrow-yaji01.png" alt="" style="display: block; margin-left: auto; margin-right: auto;" /></p>
<h4 style="text-align: center;">Cooling structure of water/radial ventilation-cooled generator</h4>
<p><img src="https://0aab1c21-cdn.agilitycms.cloud/Attachments/NewItems/Technology-1-3-05.png" alt="" /></p>

Water-Cooled Generators

Latest Technologies

Whether you have questions about our products, services and capabilities or have another concern or inquiry, our team is here to help.

We are here to help!

Digital Automated Voltage Regular

Synchronous Condenser

Other Products

<h2>Mitsubishi Electric has more than 70 years of manufacturing experience with electric generators, and is actively involved in the development of new generator technology.</h2>
<p>We are proud to provide state of the art solutions for the power industry including life-extension, periodic inspections, and operational support utilizing our expertise in the power generation field.</p>
<p>Stator cooling systems available for Mitsubishi Electric turbine generators are divided into three types, and cover a wide output range up to the 2,000MVA class.</p>
