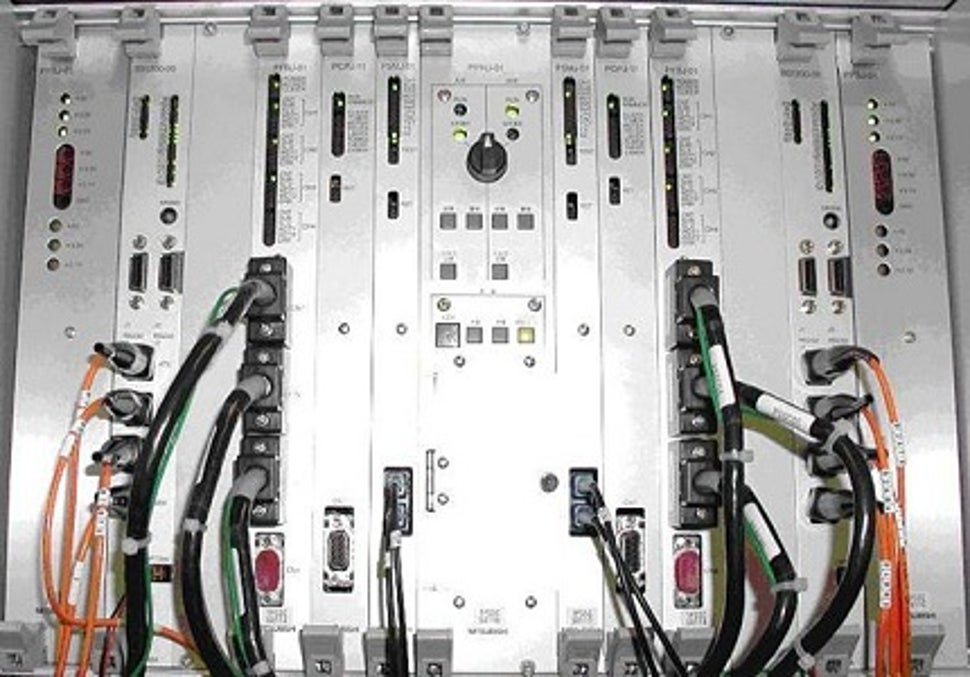

The Mitsubishi Electric Total Advanced Control (MELTAC®) Digital I&C Platform is built around a common controller for both safety and non-safety related plant control functions.
MELTAC® is currently installed in over 450 applications at over 24 operating nuclear power plants and has over 30 million hours of operating experience with zero plant trips due to software or hardware failures.
The latest generation of the MELTAC® Digital I&C Platform, MELTAC-N, has been utilized in non-safety applications since 2001 and for safety critical control applications since 2009.
Applications
- Reactor Protection System
- Engineered Safety Features Actuation System
- Reactor Control System
- Control Rod Drive Mechanism Control System
- Digital Rod Position Indication System
- Turbine Protection System
- Turbine Electro-Hydraulic Governor Control System
- Nuclear Instrumentation System
- In-Core Instrumentation System
- Radiation Monitoring System
Qualification
The MELTAC® platform is completely engineered, manufactured, and tested in-house under Mitsubishi Electric’s 10 CFR 50 Appendix B quality assurance program, and fully qualified to all applicable nuclear safety regulations and standards, including:
- IEEE 7-4.3.2 Criteria for Programmable Digital Computer Systems
- IEEE 323 Qualifying Class 1E Equipment
- IEEE 344 Seismic Qualification of Class 1E Equipment and Circuits
- R.G. 1.152 Criteria for Programmable Digital Computers in Safety Systems of Nuclear Power Plants
- R.G. 1.180 Guidelines for Evaluation Electromagnetic and
- Radio Frequency
- Quality Assurance Program compliant to 10 CFR 50
- Appendix B (ASME NQA-1-1994)
Other Products

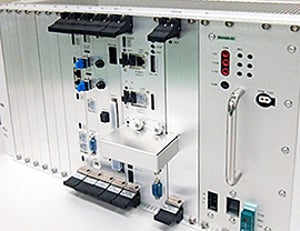

MR Computer
A distributed, industrial computer incorporating the MELCO real-time, POSIX-compliant operating system, MI-RT.

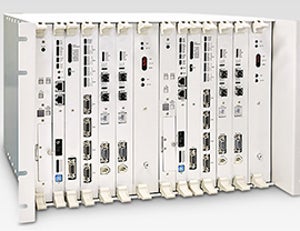

Safety Protection System
Control and monitoring systems that support the safe operation of nuclear power plant safety functions.

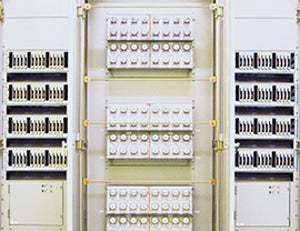

Digital Rod Position Indication System
The DRPI System monitors and displays all control rod position information in the reactor core.

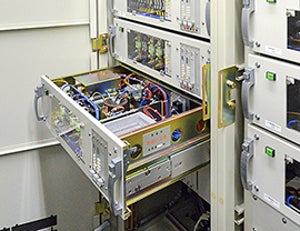

Control Rod Drive Mechanism Control System
The system commands and powers the control rod grippers that position the control rod cluster in the reactor core.

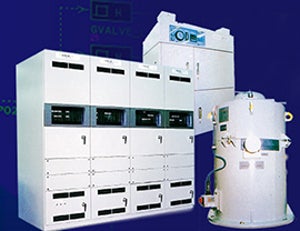

Radiation Monitoring System
The RMS monitors dose rates and radiation levels at nuclear power plants.

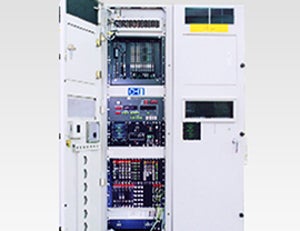

Nuclear Instrumentation System
An advanced design that allows for easier calibration and error detection with increased reliability and maintainability.

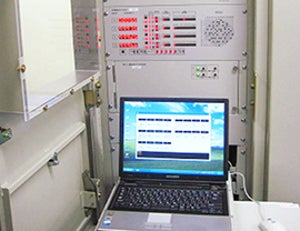

Incore Instrumentation System
Measures neutron flux distribution in the reactor core and provides input to the core management computer.

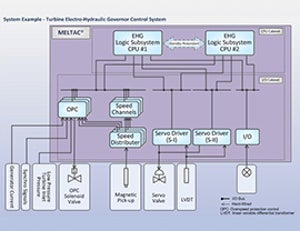

Turbine Electro Hydraulic Governor Control System
Manages steam flow to the turbine and can be applied to a variety of turbine generator system designs.

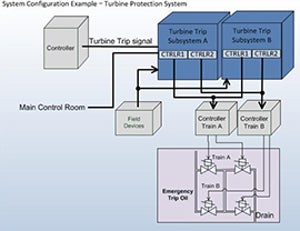

Turbine Protection System
Providing an additional independent protection function for the steam turbine and generator.

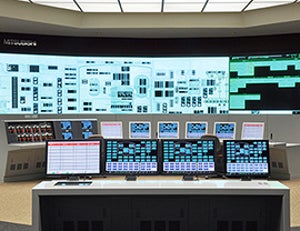

DIATOM
A flexible operator interface that improves the connection between the control room and facility monitoring systems.
